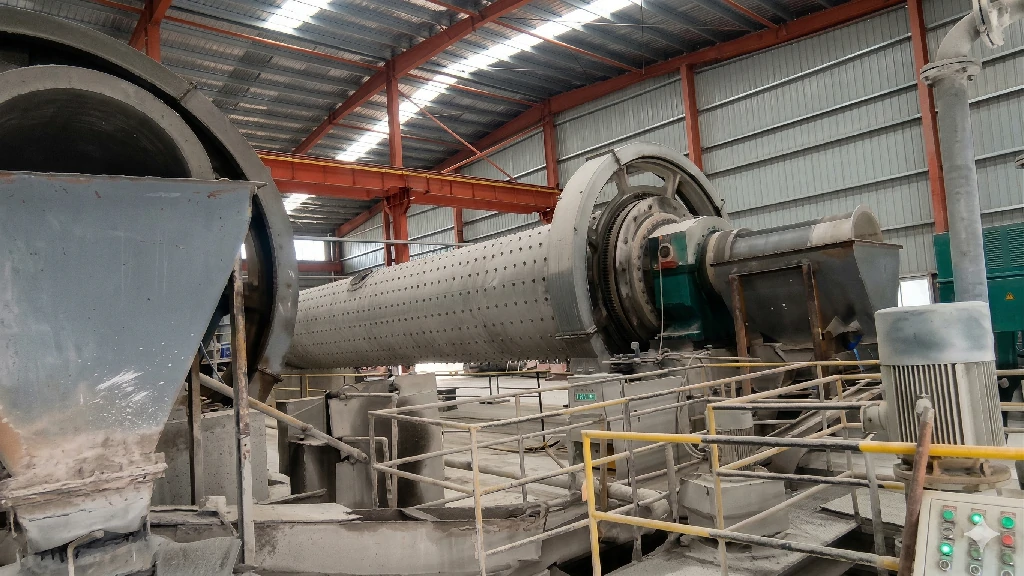

Ball mill grinding system in a professional mineral processing plant showroom

Blog

DBM consistently upholds the corporate mission of “ensuring quality, pursuing sustainable development,” and operates on the business principle of “customer foremost, mutual benefit, and shared success.”

Optimizing grinding media ratio for industrial ball mills

The selection of grinding media is the most critical operational variable in determining the final output quality of any milling operation. For an industrial ball mill, the media acts as the primary tool for comminution. Without the correct charging ratio and material hardness, even the most advanced ball mill design will fail to reach its maximum throughput potential.

Impact vs. Attrition: The Physics of Media Selection

To optimize grinding efficiency, operators must understand the two primary forces at work inside the mill:

Impact Force : Generated by larger steel balls dropping from the "shoulder" of the mill. This is essential for breaking down the initial feed size.
Attrition Force : Created by the sliding and rolling motion of smaller media. This force is responsible for creating fine particles and achieving the final product fineness.

A common mistake in many mineral processing plants is over-charging with large-diameter balls. While this increases initial breakage, it reduces the total surface area available for grinding, leading to a "coarse tails" problem in the discharge.

Choosing Between Forged and Cast Steel Balls

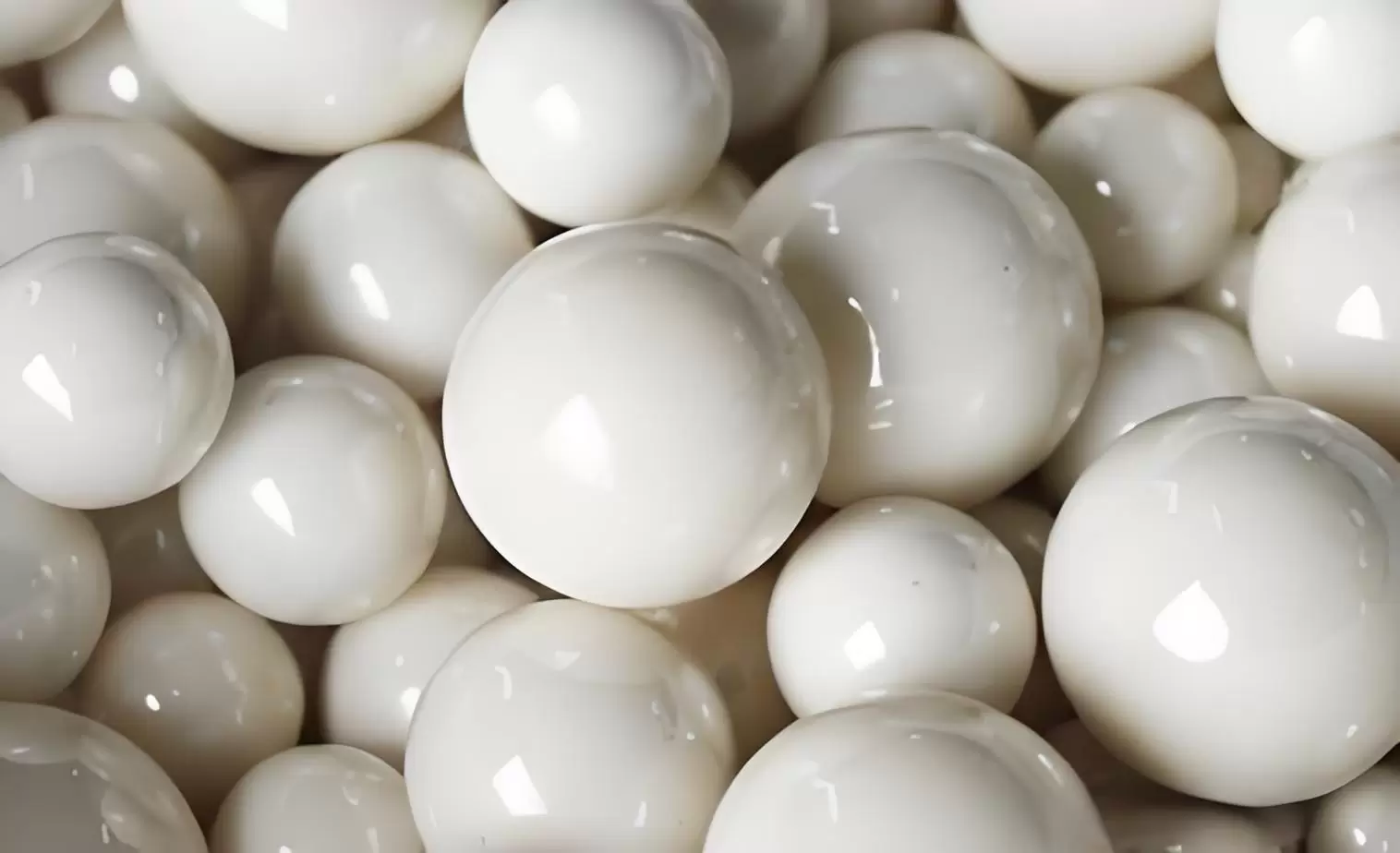

Not all grinding media are created equal. The choice between forged and high-chrome cast balls depends on your specific material properties:

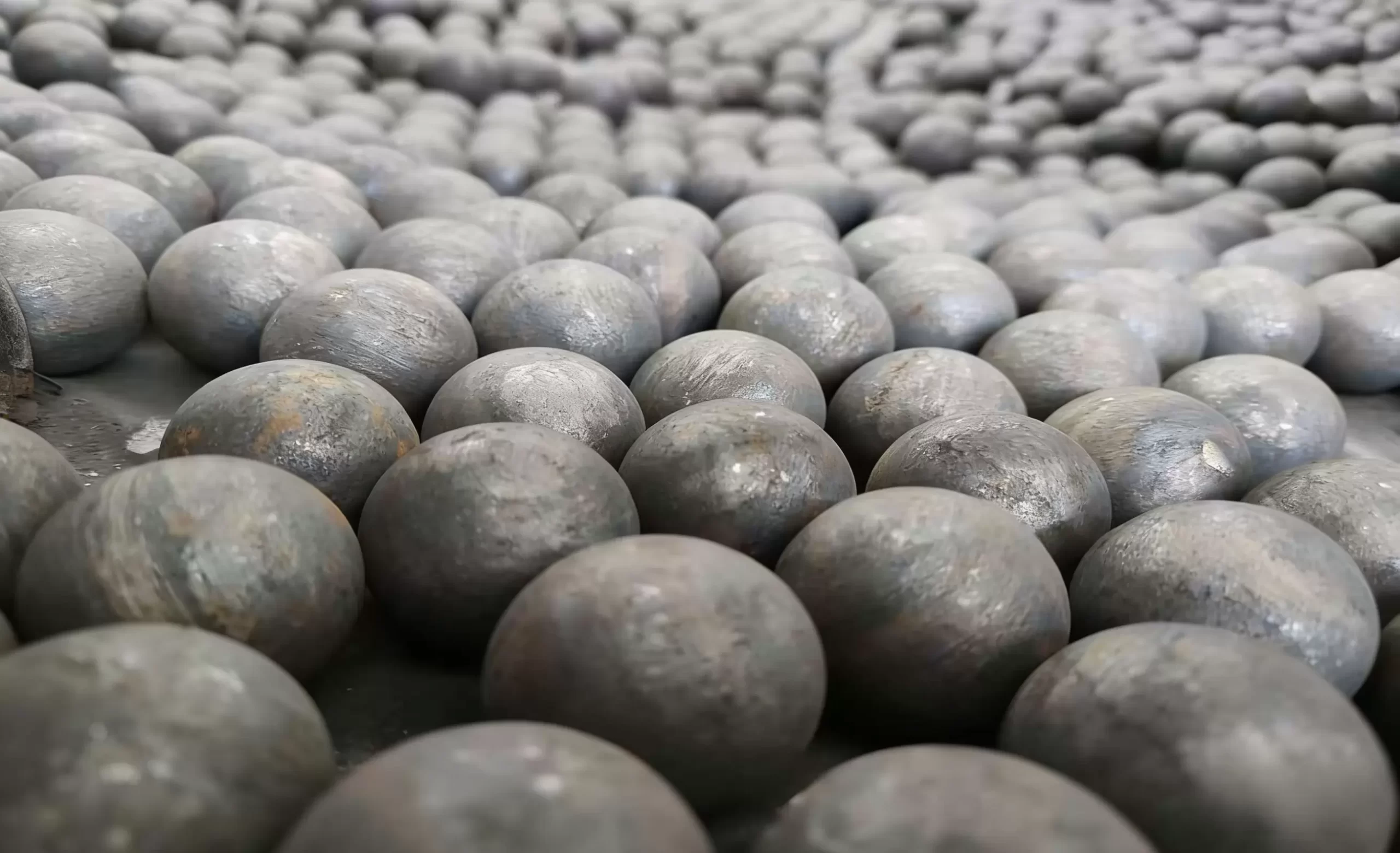

Forged Steel Balls: Known for high impact resistance and toughness. They are ideal for primary grinding stages where the ore is hard and abrasive.
High-Chrome Cast Balls: These offer superior wear resistance in corrosive environments or fine grinding stages. However, they can be more brittle under extreme impact.

At Shanghai Dingbo (DBM), we recommend monitoring the media wear rate (measured in grams per ton processed) to determine which material offers the best ROI for your specific quarry or mine.

The Science of Grinding Media Charging Ratios

A professional ball mill setup usually requires a "seasoned" charge—a specific mix of ball diameters. A typical starting ratio for a new operation might look like this:

40-50mm: 20% (for fine grinding)
60-80mm: 45% (the core grinding mass)
90-110mm: 35% (for primary impact)

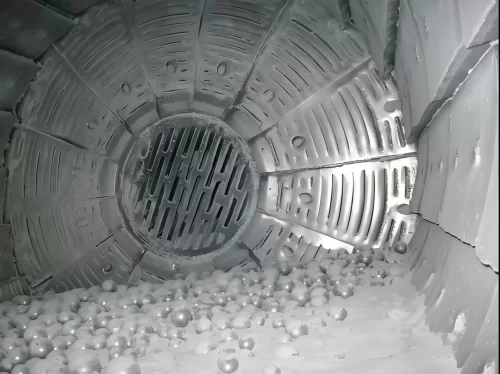

As the mill operates, the rotational speed and liner design will naturally wear these balls down. Operators must perform a "kibbling" or replenishment every 24-48 hours to maintain this equilibrium. Failure to do so will result in a significant drop in grinding efficiency and an increase in energy costs.

Synergy with Secondary Grinding

Properly calibrated grinding media ensure that the ball mill discharge is perfectly sized for the secondary grinding phase. By stabilizing the input size, you significantly reduce the mechanical stress on your downstream rock grinder machine. This integrated approach allows for a more streamlined, energy-efficient production line that delivers consistent high-grade fine powders.
