PC Hammer Crusher

PC Hammer Crusher

The PC Hammer Crusher is a robust, high-capacity machine for crushing medium to hard materials like coal, limestone, and ores. Its versatile design allows easy output size adjustment, suitable for mining, metallurgy, chemicals, and recycling.

5 - 480 t/h

Capacity

Leave Message

Online Services

25 mm

Min. Output Size

350 mm

Max. Input Size

Highlights

High Crushing Efficiency

The combination of hammers and screen ensures efficient material breakdown, achieving high throughput in various applications.

Adjustable Output Control

Operators can easily adjust the gap between hammers and screens to produce materials within desired size ranges (e.g., 0-3mm, 3-10mm).

Rugged Construction

The crusher is built with high-quality materials, ensuring durability and long service life even under heavy-duty operations.

Low Maintenance

Its compact design and advanced components make it easy to maintain, reducing downtime and operational costs.

Watch Video

Working Principle

Feeding Material

The material to be crushed is fed into the crusher through a hopper or feeder system.

Hammer Impact

Heavy-duty hammers attached to a rotating rotor strike the incoming material with high force, breaking it into smaller particles.

Screening and Separation

The crushed materials are screened through a screen, and qualified finished products are directly discharged, while unqualified large particles are returned for further crushing.

Adjustable Output Size

The distance between the hammers and the screen can be adjusted to control the final product size, ensuring flexibility for different applications.

Dust Control

A dust collection system is integrated to minimize air pollution and ensure a cleaner working environment.

Energy Efficiency

The crusher is designed with energy-saving features, reducing operational costs while maintaining high productivity.

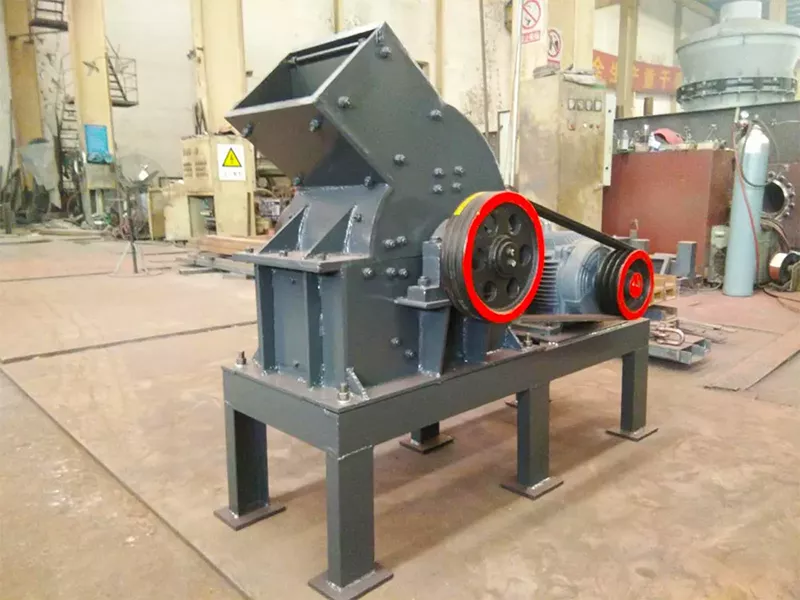

Gallery

Technical Specs

Model	Feed particle size (mm)	Discharge size (mm)	Capacity (t/h)	Motor Power (kw)	Weight (t)	Overall dimensions（mm）
PC400*300	≤200	≤25	45787	11	0.8	900670860
PC600*400	≤250	≤30	45952	22	1.5	120010501200
PC800*600	≤250	≤25	18-40	55	3.8	131011801310
PC1000*800	≤350	≤35	25-50	75	4	160013901575
PC1000*1000	≤300	≤35	30-55	132	8	180015901775
PC1250*1250	≤350	≤35	35-65	180	14	200016001890
PC1400*1400	≤350	≤35	50-100	280	32	236518702220
PC1600*1600	≤350	≤35	100-150	480	37.5	305028502800

FAQ

Can't find what you are looking for?
Contact Us.

If you encounter any problems while using our crushers, sand makers, grinding mills or mobile crushers and other mining equipment, or have any questions about equipment selection, operation and maintenance, troubleshooting, etc., you are welcome to leave a message here for consultation.

Job Position

Comments from Engineers

1What is the maximum feed size of the PC Hammer Crusher?

The maximum feed size depends on the specific model but generally ranges from 50mm to several hundred millimeters. Always refer to the technical specifications for your particular crusher.

2How does the PC Hammer Crusher handle different materials?

It is designed to handle various materials, including soft to medium-hard rocks and ores, with adjustable settings to adapt to different material properties.

3What maintenance is required for the hammer crusher?

Regular maintenance includes checking hammer wear, cleaning or replacing screens, lubricating moving parts, and inspecting the rotor alignment. Follow the manufacturer’s guidelines for optimal performance.

4Is the PC Hammer Crusher noisy during operation?

Like most crushers, it may generate noise during operation. However, modern designs incorporate soundproofing features and materials to minimize noise levels. Additionally, proper installation and maintenance can help reduce operational noise.

5How does the crusher ensure safety during operation?

Safety measures include protective covers for rotating parts, emergency stop systems, and guards to prevent unauthorized access. Operators should follow safety protocols to ensure safe operation.
