Pebble

Pebble

Solutions

Consistently upholds the corporate mission of “ensuring quality, pursuing sustainable development,” and operates on the business principle of “customer foremost, mutual benefit, and shared success.”

Pebble

Design Output

According to customer needs

Application

It is suitable for application in hydropower, highway and urban construction, etc.

Equipments

Jaw crusher, hydraulic cone crusher, sand maker, vibrating feeder, vibrating screen, belt conveyor.

Request Info

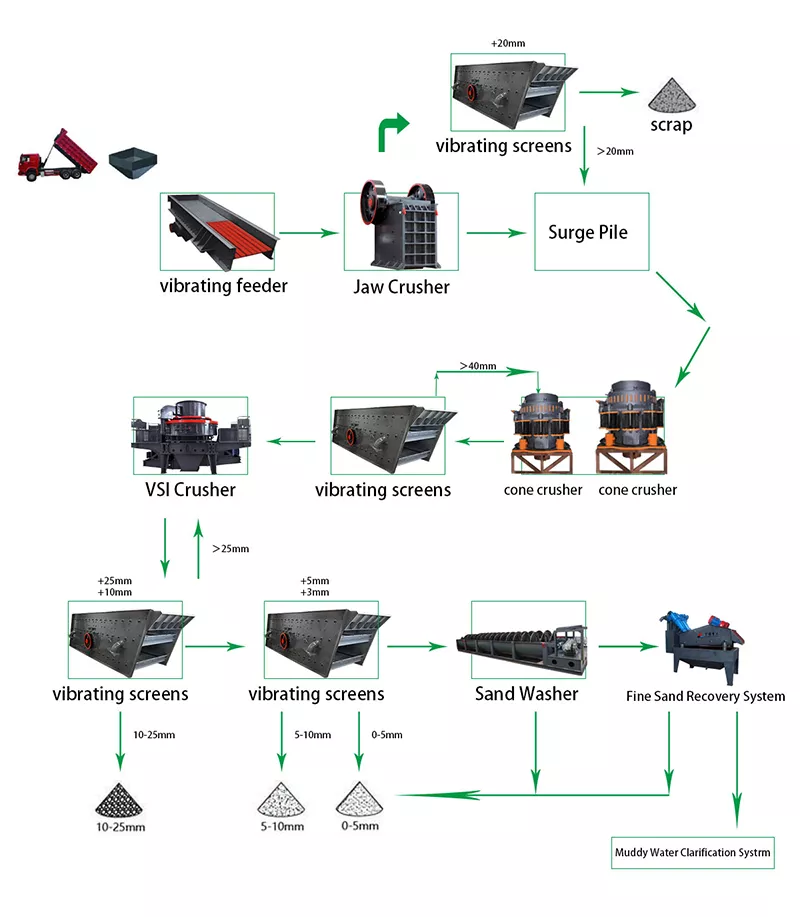

Basic process

The pebbles sand making process is divided into four stages: coarse crushing, medium fine crushing, sand making and sieving.
The first stage: Coarse Crushing
The pebbles blasted from the mountain is fed uniformly by the vibrating feeder through the silo and transported to the jaw crusher for coarse crushing.
The second stage: Medium Crushing
The coarsely crushed materials are screened by vibrating screen and then conveyed by belt conveyor to cone crusher for medium crushing. The crushed stones are conveyed to the vibrating screen through a belt conveyor to sieve out different specifications of stones. The stones that meet the requirements of the customer's particle size are conveyed to the finished product pile through the belt conveyor. The cone crusher crushes again, forming a closed circuit cycle.
The third stage: Sand Making
The crushed material is larger than the size of the two-layer screen, and the stone is conveyed to the sand maker machine through the belt conveyor for fine crushing and shaping.
The fourth stage: Screening
The finely crushed and reshaped materials are screened by circular vibrating screen for coarse sand, medium sand and fine sand.
Note
For the sand powder with strict requirements, a sand washing machine can be added behind the fine sand. The waste water discharged from the sand washing machine can be recovered by the fine sand recycling device. On the one hand, it can reduce environmental pollution, and on the other hand, it can increase sand production.
