Ground Calcium Carbonate Processing

Design Output

According to customer needs

Application

Used as a filler, widely used in plastics, papermaking, paint, fertilizer, building supplies and other daily chemical industries.

Equipments

Trapezoid mill, ultrafine powder grinding mill, raymond mill, etc.

Request Info

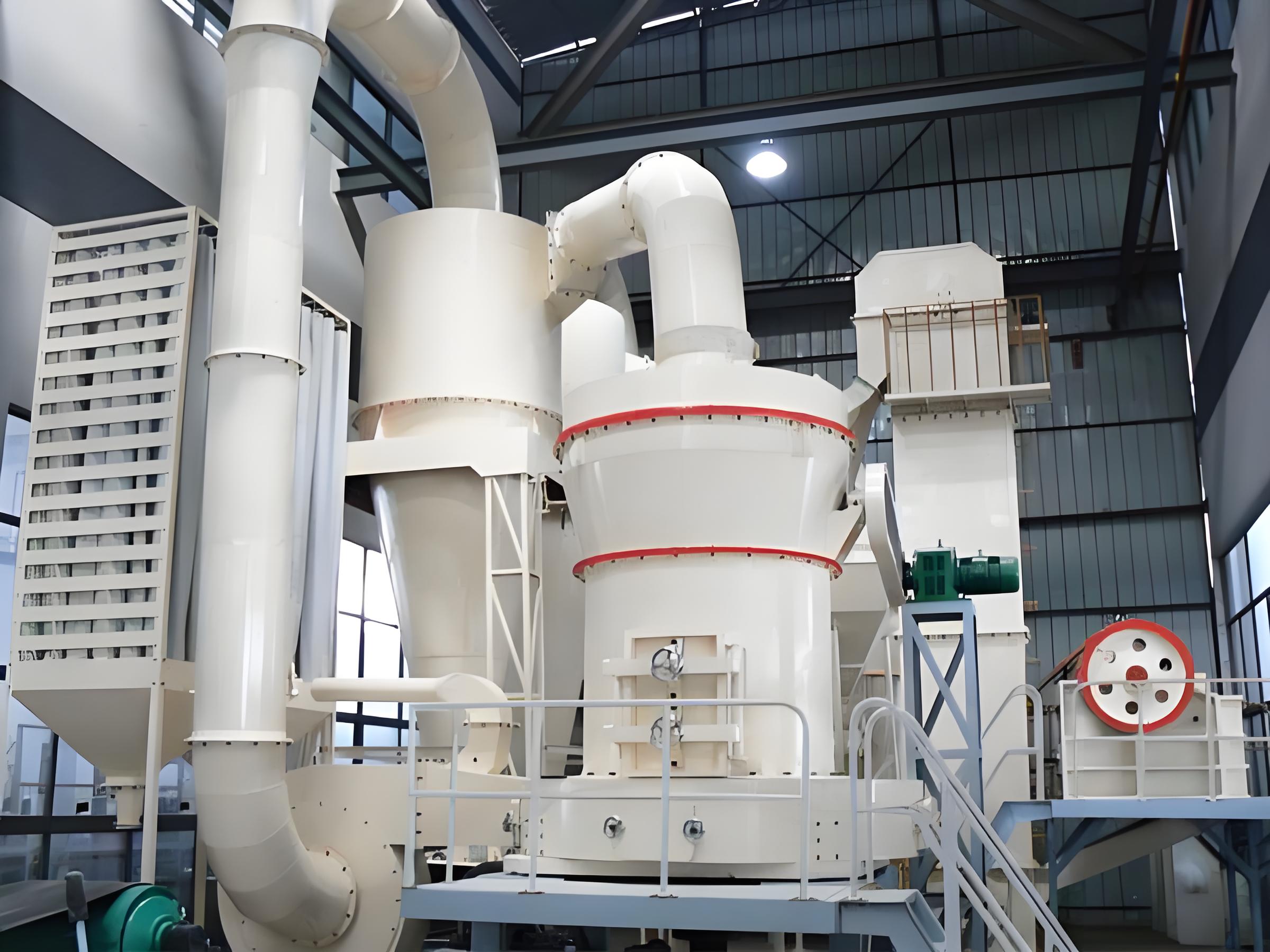

Basic Process

Ground calcium carbonate is a powder product grinded with calcite, marble, dolomite or chalk. It is mainly used in filler coating materials, paint, rubber, plastics and other industries.
(1) Grinding Stage:
Material of suitable size is fed into the main machine for grinding, and the fine powder after grinding is sent to the analyzer for grading under the action of the air flow of the fan, so that the fine powder with qualified fineness can enter the collecting stage.
(2) Collecting Stage:
The dust gas enters the cyclone collector through the outlet pipe. Under the action of centrifugal force, most of the finished fine powder is separated. Redundant gas is discharged and sent to pulse dust collector. Then it becomes clean gas. Fine powder collected by cloth bags is transported to the conveying stage through screw conveyor.
(3) Conveying Stage:
The finished ore powder collected by dust collector and cyclone collector is sent by screw conveyor to the next process or into finished product tank.

Powder Requirements

(1) Used in plastics, paint, paper and other industries (325-2500mesh)
In coatings and plastics industry, heavy calcium carbonate is usually used as filler, widely used in plastics, papermaking, paint, building supplies and other daily chemical industries. As filler, it can increase the volume of products and reduce production costs.
(2) Used in fertilizer field (about 200mesh)
Ground calcium carbonate is almost composed of monocalcium phosphate, which does not degrade phosphoric acid in soil.
